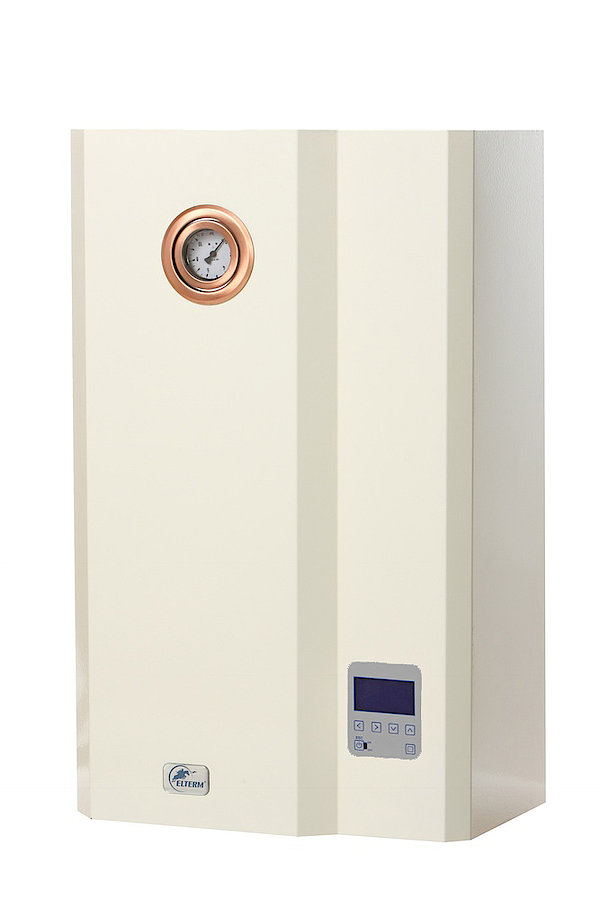

Electric heating boiler
Division (AsBIV)
- Check our electric boilers configurator
- Link to our YouTube channel
- Advanced, industrial LCD series - greater powers
- Possibility to create cascades up to 31 units
- Build-in weekly temperature controller
- Equipped with weather compensation
- Equipped with 4 x PV ready ready funcionality
- Optional control via smartphone with app
- Optional DHW control available
- Optional radio control set
- Build-in energy meter to cooperate with PV installation
- Perfect as main or alternative source of heat in PV installations
- Adjustable boiler power to better cooperate with PV
- Can operate in both sealed and air-vented heating system
- Electronic temperature setting - range 5-95°C
- Energy efficiency class D, spectrum A+++ to D
Pobierz kartę katalogową
| Item | Model | Power | # Boilers |
|---|---|---|---|
|
120030 |
Electric heating boiler Division 30kW |
30kW / 400V |
1 |
|
120036 |
Electric heating boiler Division 36kW |
36kW / 400V |
1 |
|
120042 |
Electric heating boiler Division 42kW |
42kW / 400V |
1 |
|
120048 |
Electric heating boiler Division 48kW |
48kW / 400V |
1 |
|
120054 |
Electric heating boiler Division 54kW |
54kW / 400V |
2 |
|
120060 |
Electric heating boiler Division 60kW |
60kW / 400V |
2 |
|
120066 |
Electric heating boiler Division 66kW |
66kW / 400V |
2 |
|
120072 |
Electric heating boiler Division 72kW |
72kW / 400V |
2 |
|
120096 |
Electric heating boiler Division 96kW |
96kW / 400V |
2 |
|
120144 |
Electric heating boiler Division 144kW |
144kW / 400V |
3 |
|
120 ... |
Electric heating boiler Division - other power against order |
Max. 1,5MW |
Max. 31 |
|
100003 |
Domestic hot water set (electrovalve, wire with tank sensor, activation code) | ||
|
010004 |
Module + factory smartphone app | ||
|
100009 |
Radio control set (room and outside temp.) - 2 x transmitter + receiver | ||
|
100010 |
Radio control set (room temp.) - transmitter + receiver | ||
|
100011 |
Radio control set (outside temp.) - transmitter + receiver |
