Build-in hydraulic sets Squadron
- Build-in hydraulic sets available in 6 variants
- Factory assembled - time saving
- Better price compared to separte components purchase
- Pump groups are available in 3 variants:
- With mixing rotary valve and servo
- With mixing thermostatic valve
- Universal one / direct
- Distribution low loss header with patented inox flow guide
- Flow guide keeps increased efficiency of condensing gas boiler and heat pump
- Flow guide enables alternate connection of pump groups with a spacing of 125mm
- Universal construction (adaptation set) enables 360° installation
- All pump groups are equipped with DN15 / 130mm electronic pumps
- Possible cooperation with any given heat source
- Max power up to 35kW
- Components from top suppliers
- Internal parts rubber insulated
- Teturn termometers with return and ball valves
- Wago connectors for quick elecrical assembly
Please check our YouTube channel for more info
Pobierz kartę katalogową
| Item | Model | Usage |
|---|---|---|
|

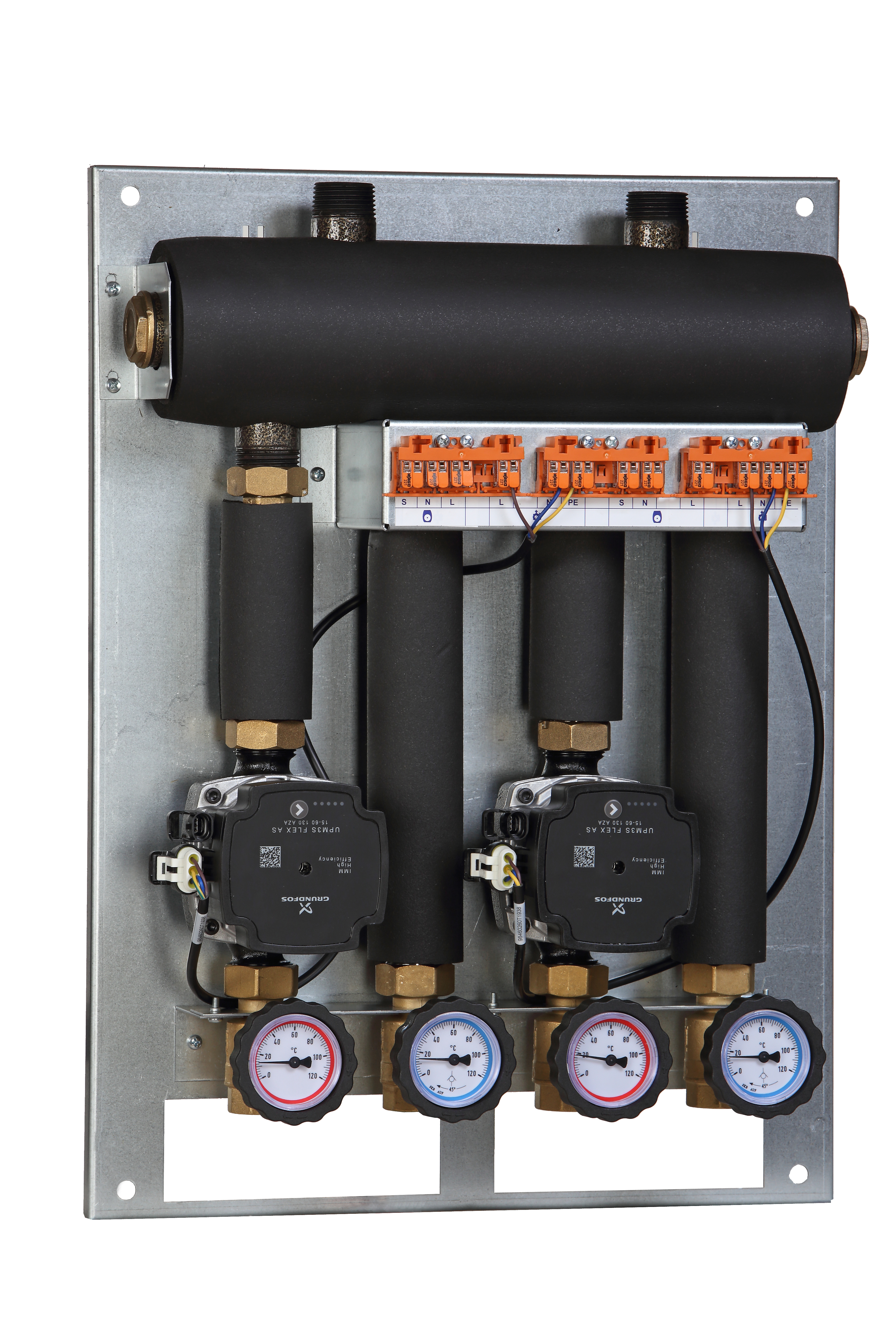

835070 |
Squadron 070 (SKE 2DC+ 35 kW, 2 x UNI, pumps) |
Radiators |
|

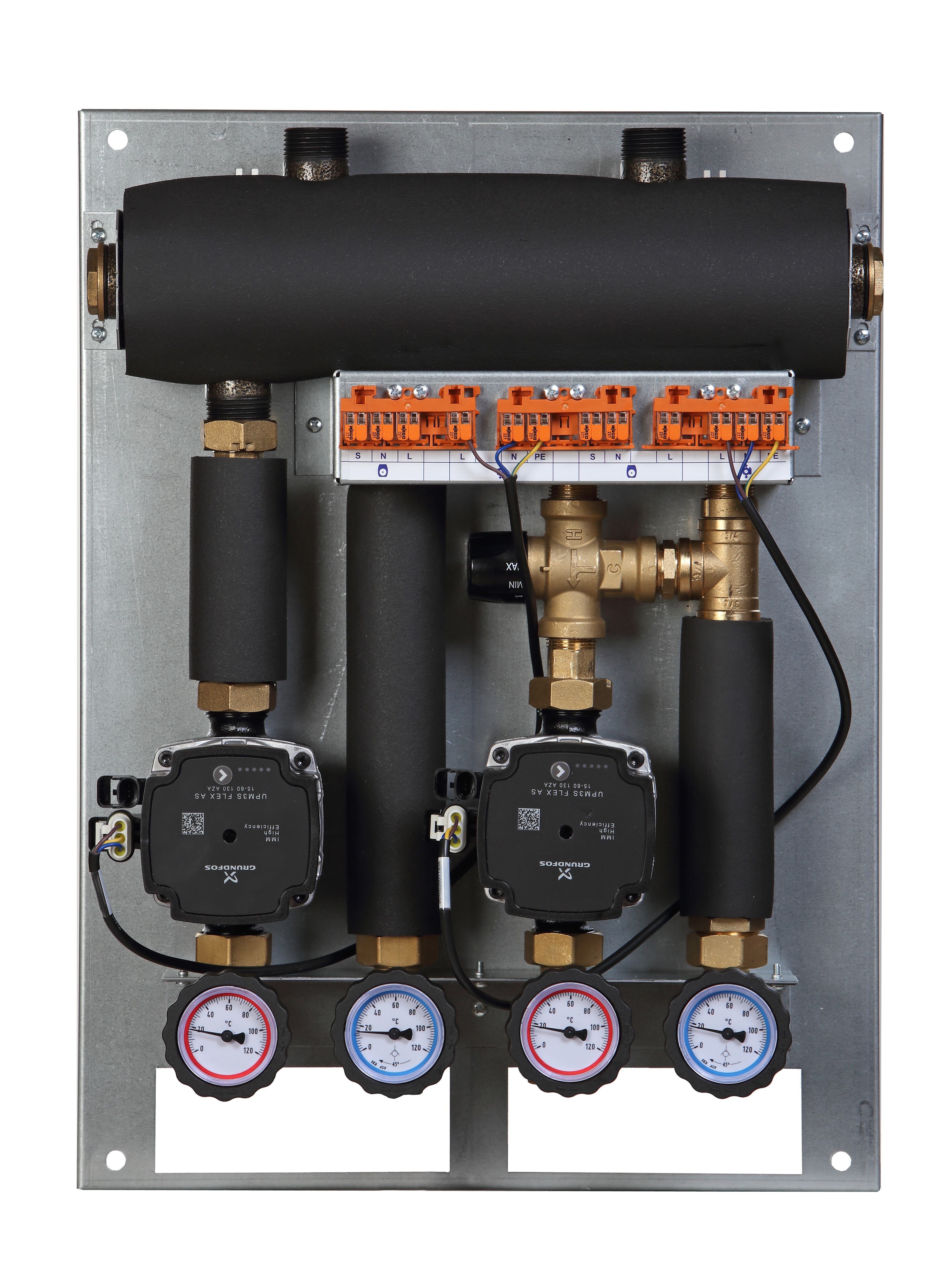

835370 |
Squadron 370 (SKE 2DC+ 35 kW, UNI, thermostatic valve, pumps) |
Radiators / floor h. |
|

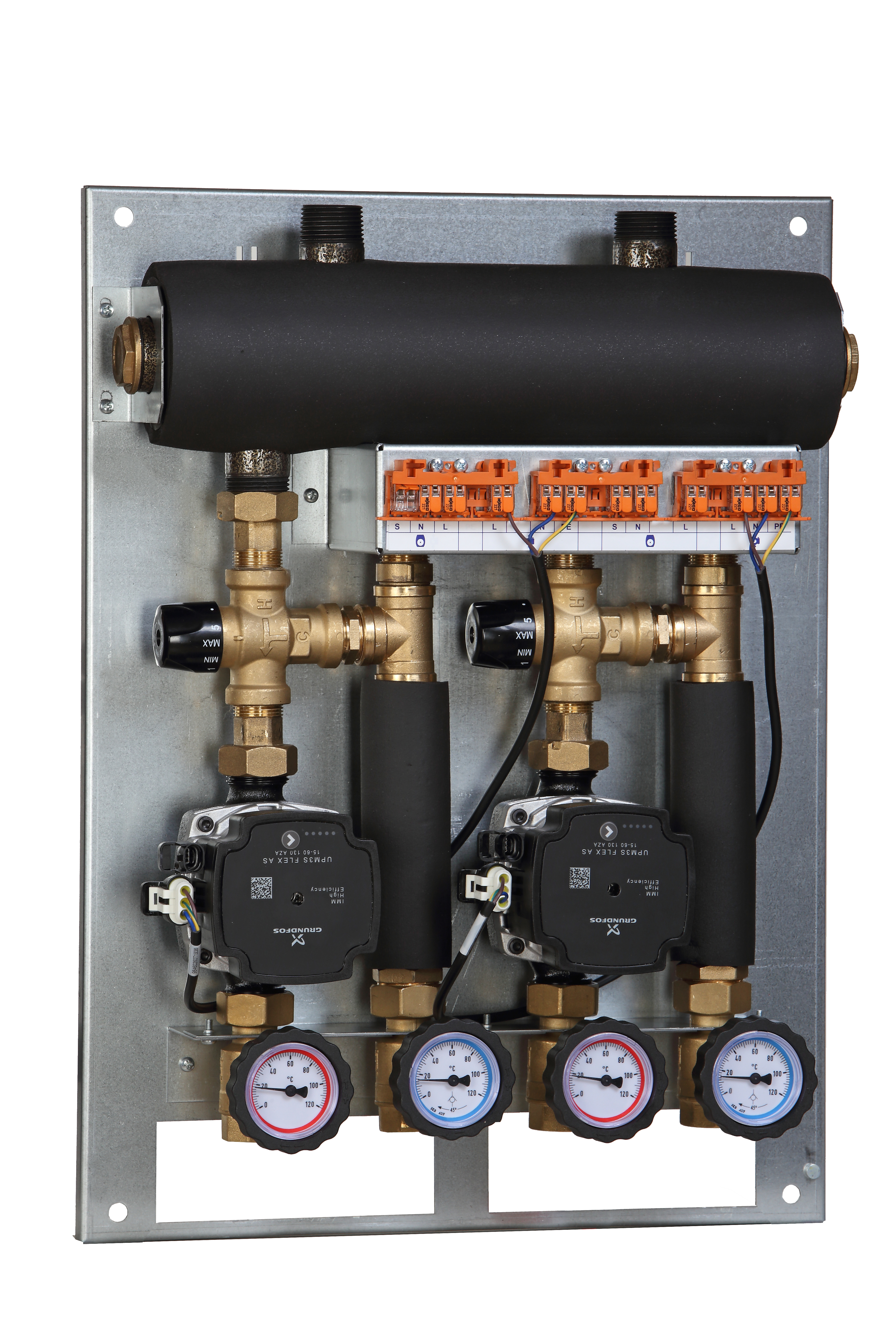

835373 |

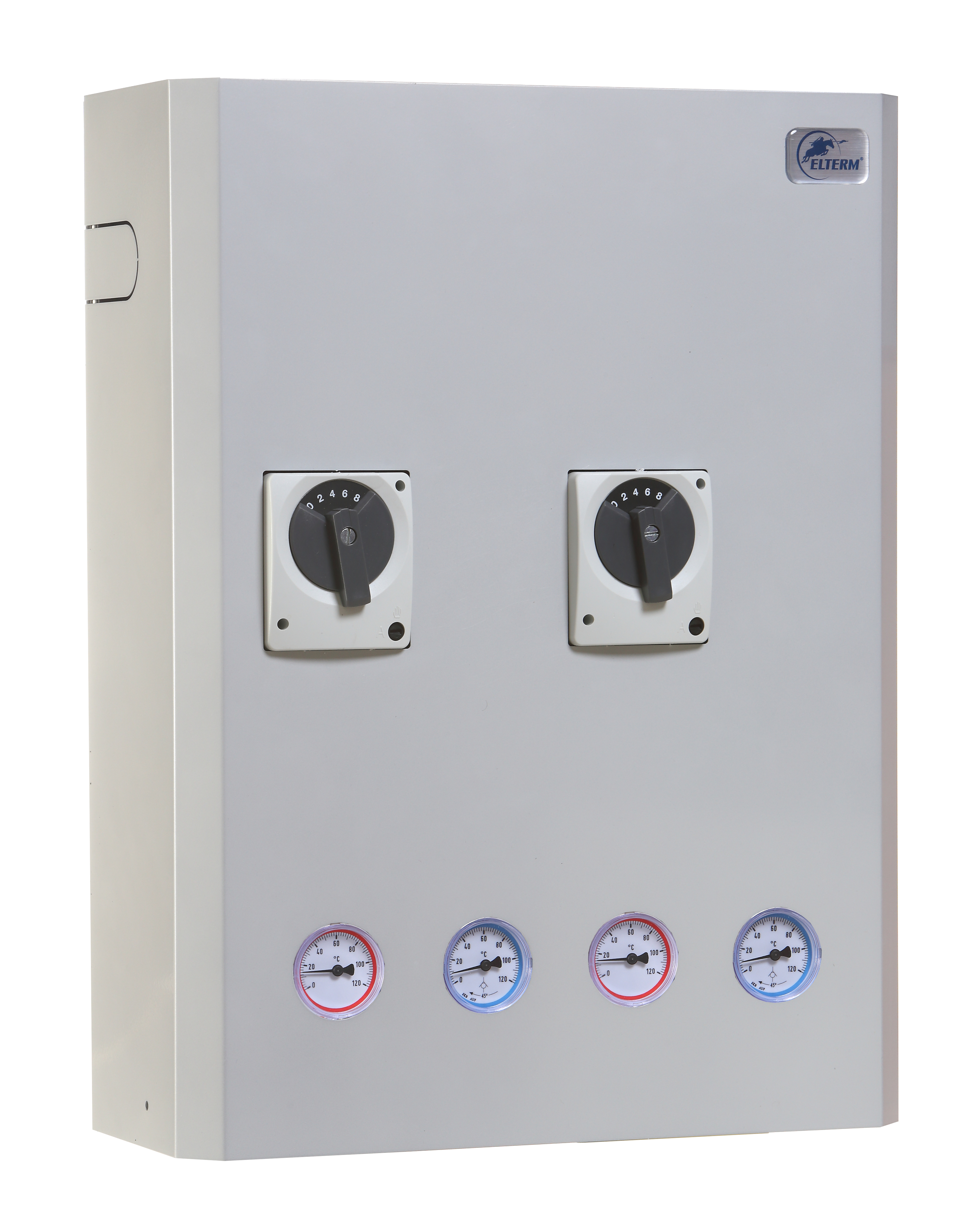

Squadron 373 (SKE 2DC+ 35 kW, 2 x thermostatic valve, pumps) |
Floor h. |
|

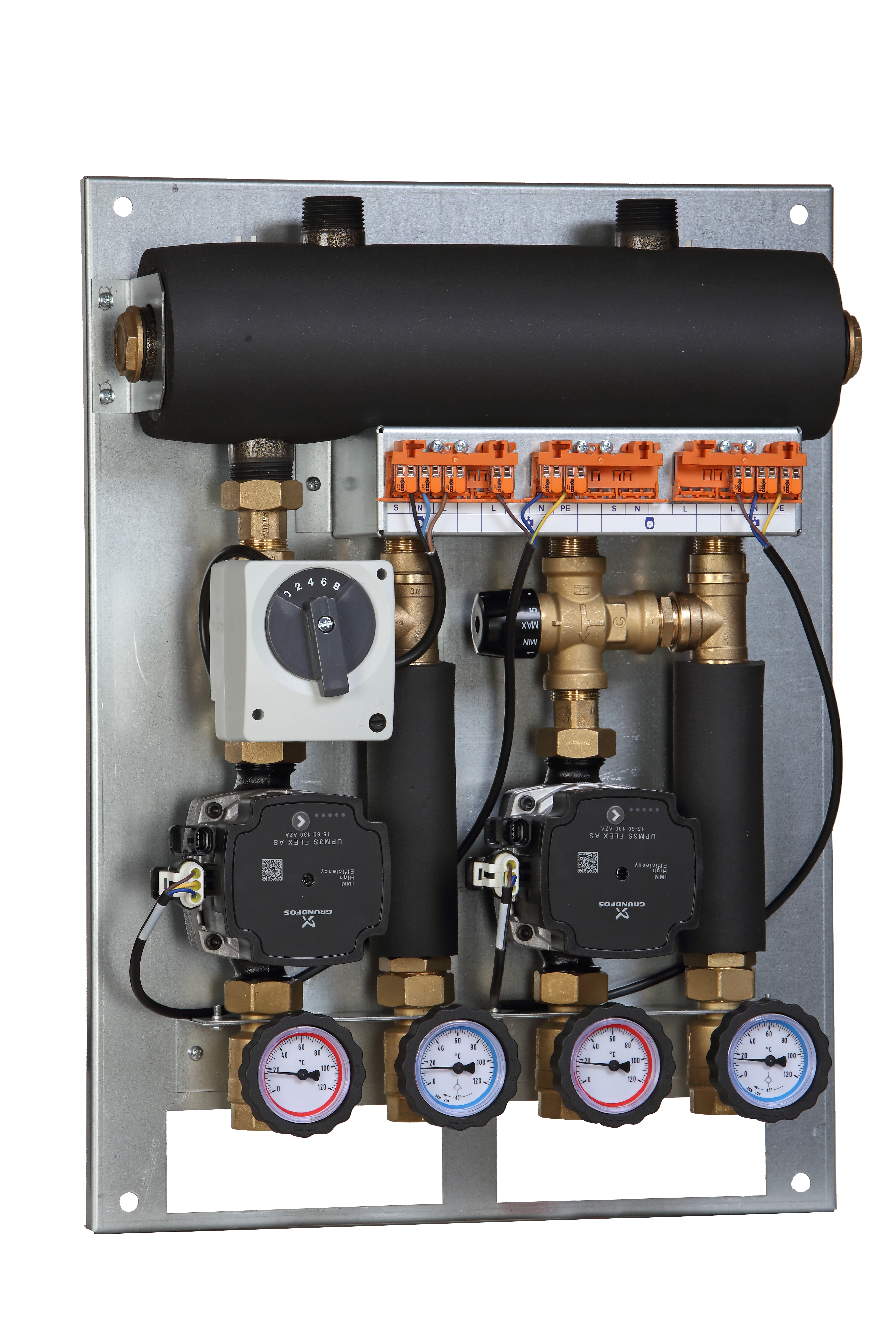

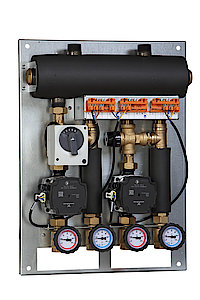

835384 |
Squadron 384 (SKE 2DC+ 35 kW, thermostatic valve, rotary valve + servo, pumps) |
Floor h. / radiators |
|

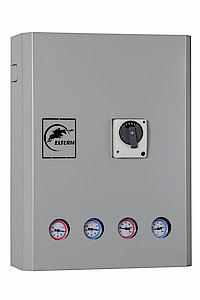

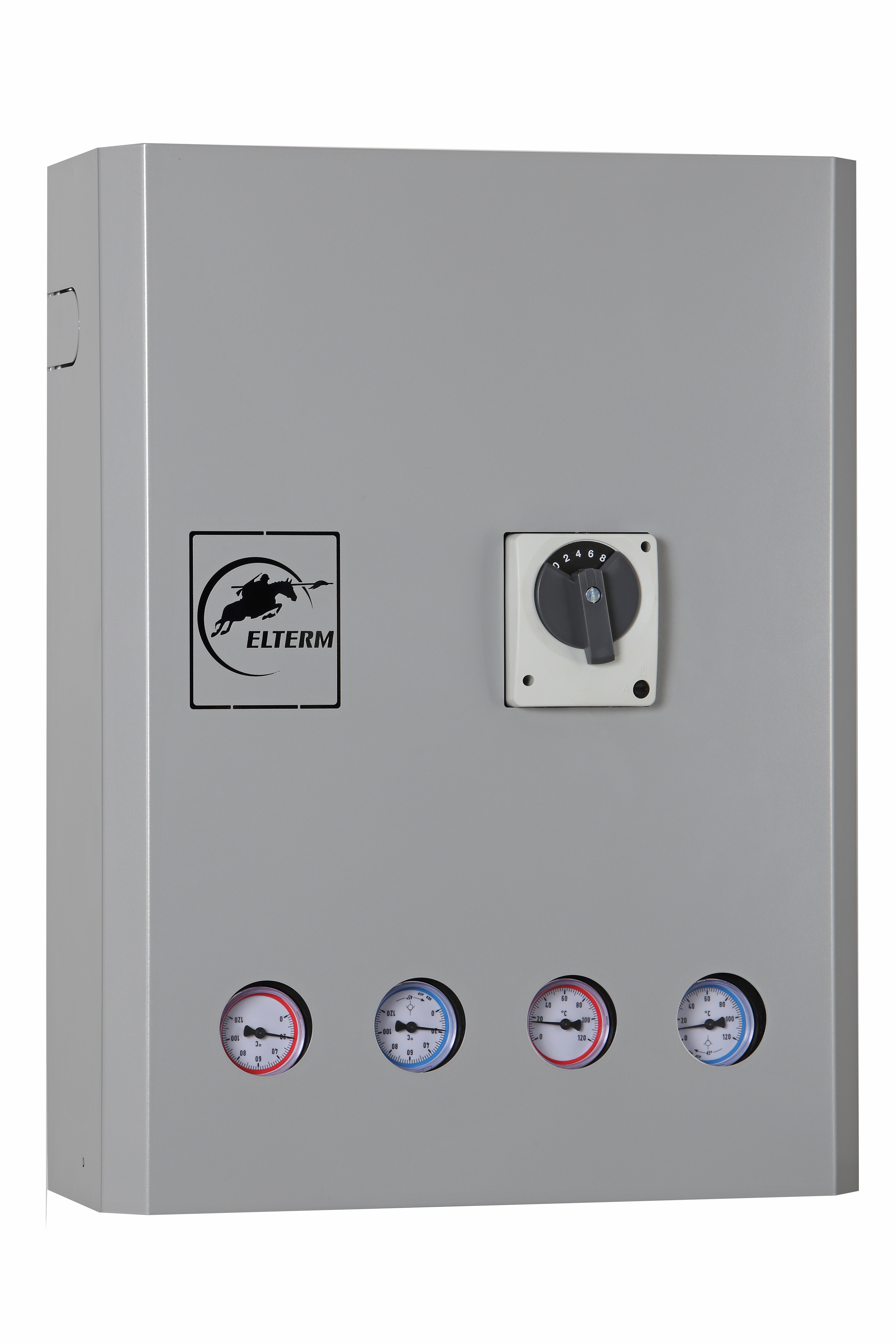

835480 |

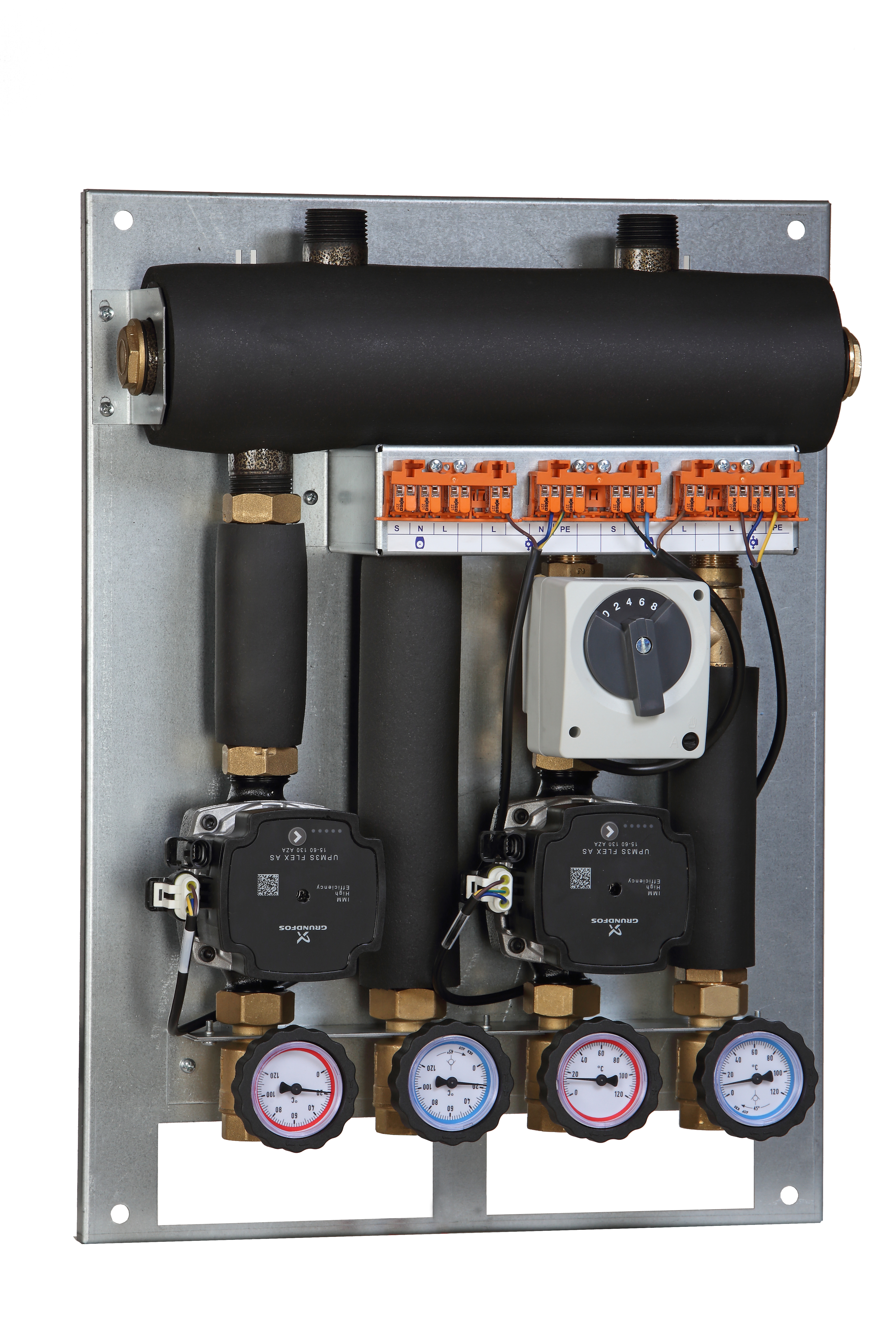

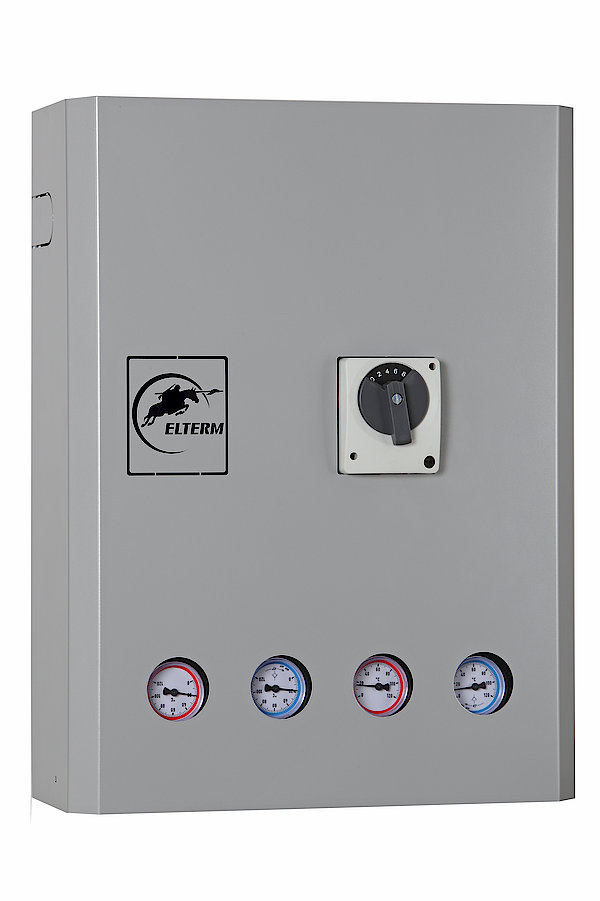

Squadron 480 (SKE 2DC+ 35 kW, UNI, rotary valve + servo, pumps) |
Floor h. / radiators |
|
835484 |
Squadron 484 (SKE 2DC+ 35 kW, 2 x rotary valve + servo, pumps) |
Radiators / floor h. |
