Brigade hydraulic sets
- Hydraulic sets available in 16 variants
- Factory assembled - time saving
- Better price compared to separte components purchase
- Dedicated to cooperate with buffer tank
- Pump groups are available in 3 variants:
- With mixing rotary valve VRG - adaptive KVS range
- With mixing thermostatic valve VTA (up to 60m²) or VTA522 (up to 150m²)
- Universal one / direct
- Compact manifold without low loss header functionality, have built-in inox flow divider
- Flow divider enables alternate connection of pump groups with a spacing of 125mm
- Universal construction (adaptation set) enables 360° installation
- Perfect to connect two heat sources
- Maximum set power - up to 40kW
- Possibility to install 3rd pump group (expansion set)
- Components from top suppliers
- EPP insulated
Please check our YouTube channel for more info
Pobierz kartę katalogową
| Item | Model |
|---|---|
|
840000 |

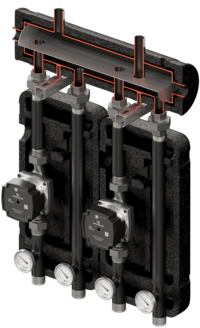

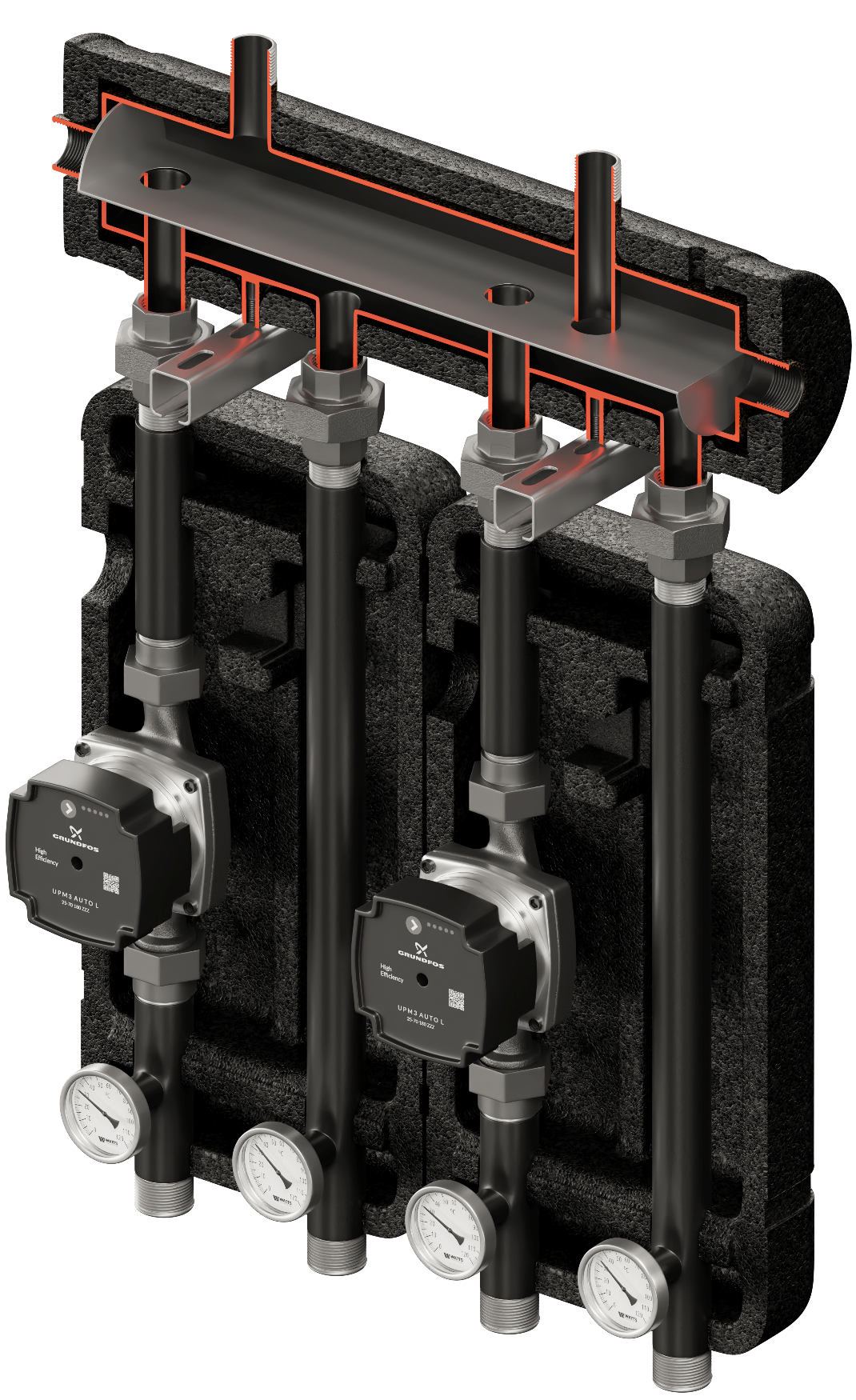

Brigade 000 (KRE 2D+ 40kW, 2 x UNI) |
|
840070 |
Brigade 070 (KRE 2D+ 40kW. 2 x UNI, pumps DN25) |
|
840410 |

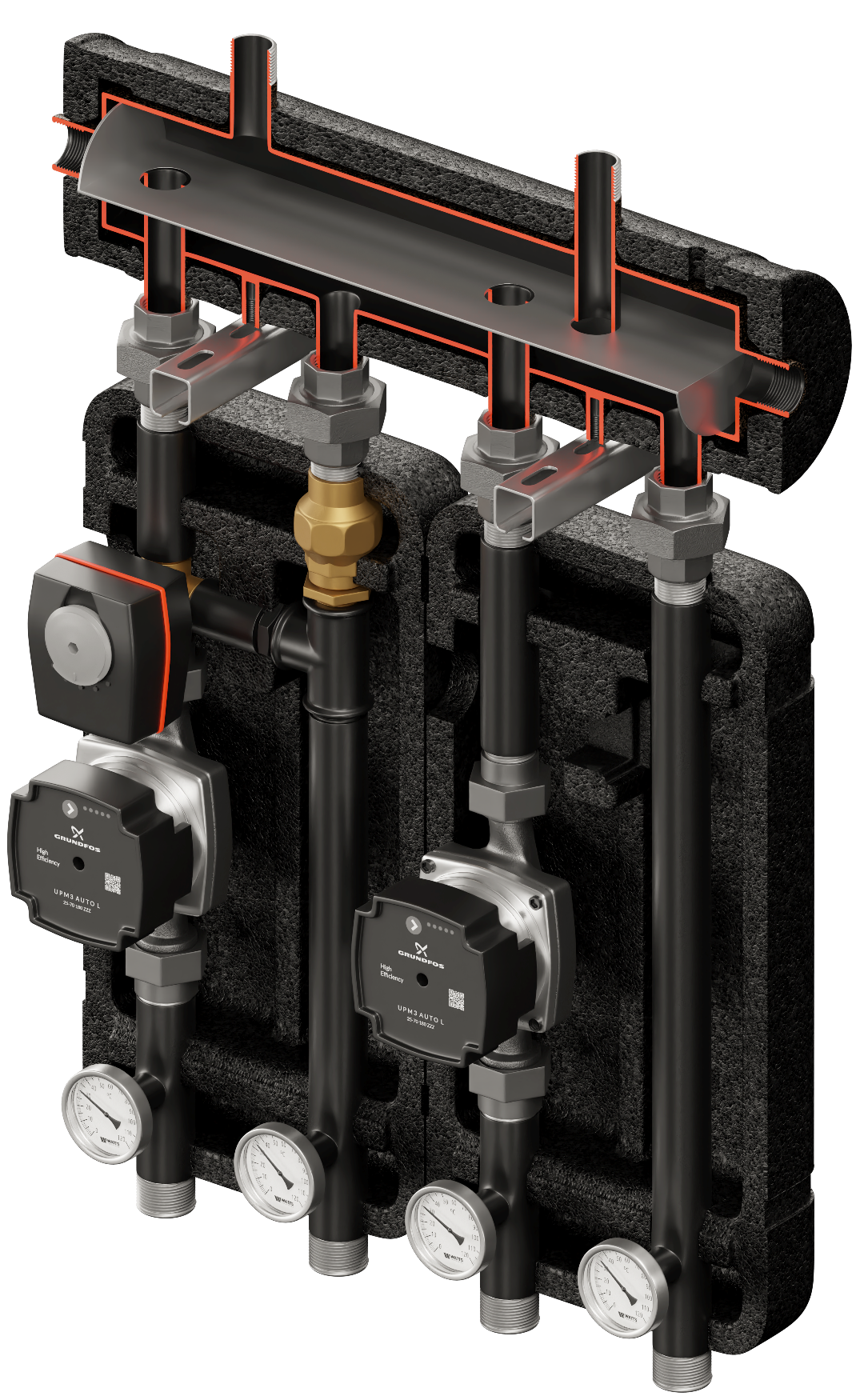

Brigade 410 (KRE 2D+ 40kW, UNI, VRG432, servo ARA) |
|
840480 |
Brigade 480 (KRE 2D+ 40kW, UNI, VRG432, pumps DN25, servo ARA) |
|
840300 |

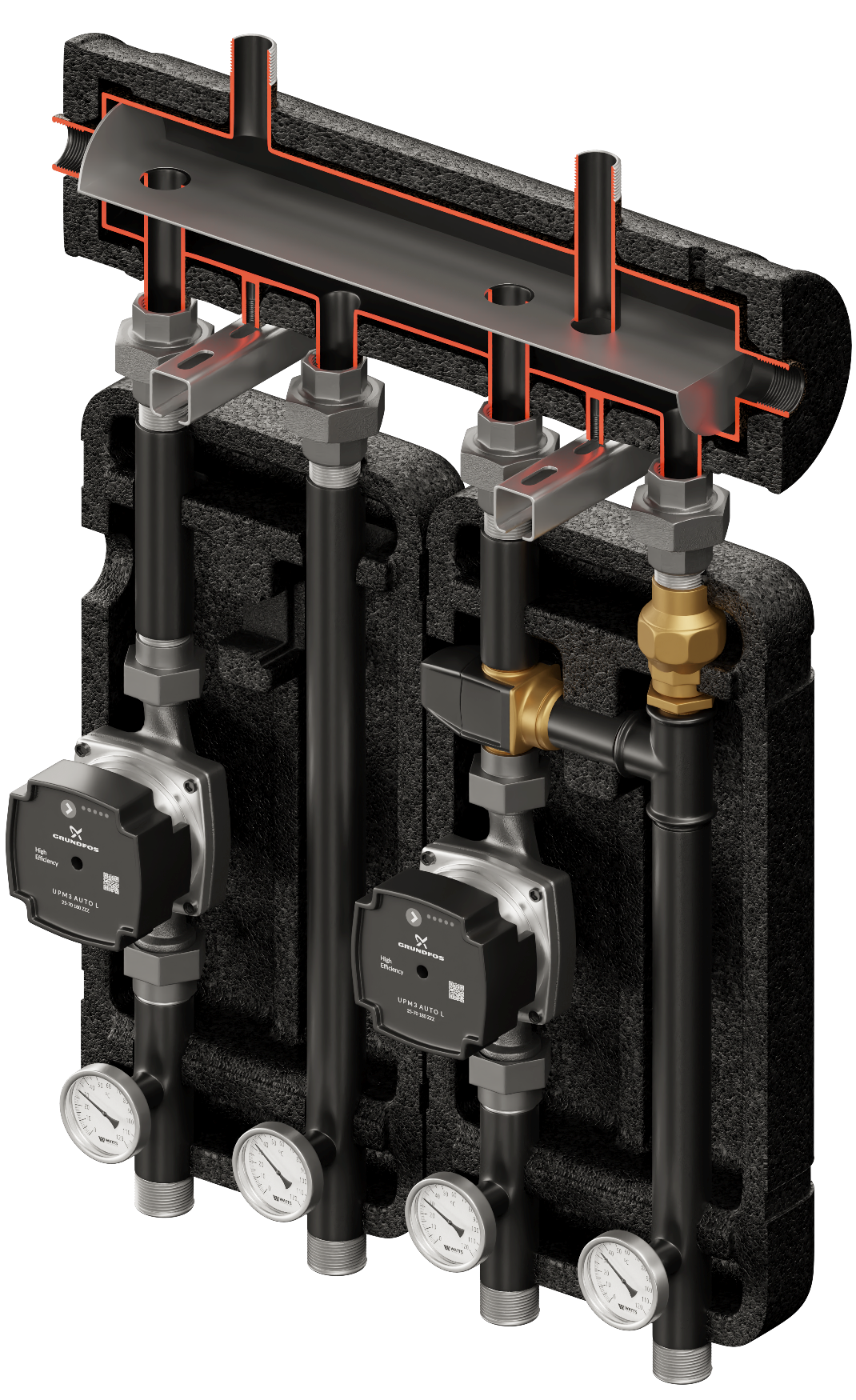

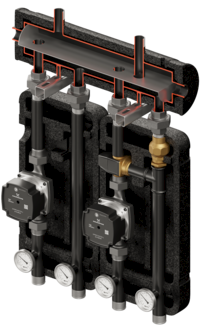

Brigade 300 (KRE 2D+ 40kW, UNI, VTA322) |
|
840370 |
Brigade 370 (KRE 2D+ 40kW, UNI, VTA322, pumps DN25) |
|
840500 |
Brigade 500 (KRE 2D+ 40kW, UNI, VTA522) |
|
840570 |
Brigade 570 (KRE 2D+ 40kW, UNI, VTA522, pumps DN25) |
|
840505 |

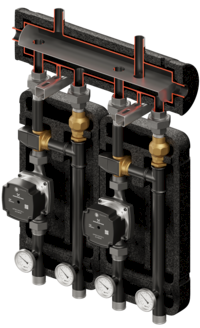

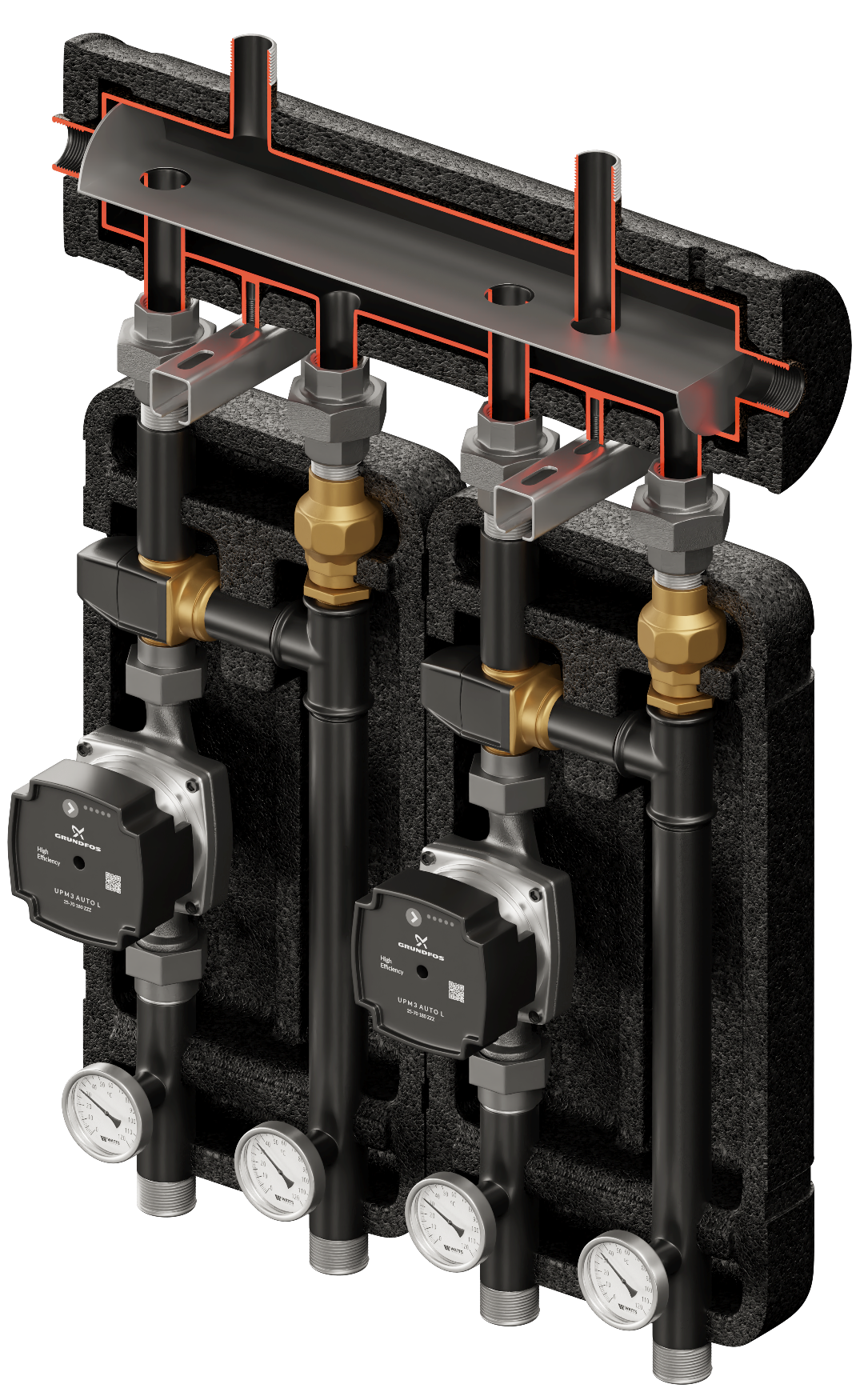

Brigade 505 (KRE 2D+ 40kW, 2 x VTA522) |
|
840575 |
Brigade 575 (KRE 2D+ 40kW, 2 x VTA522, pumps DN25) |
|
840314 |
Brigade 314 (KRE 2D+ 40kW, VTA322, VRG432, servo ARA) |
|
840384 |
Brigade 384 (KRE 2D+ 40kW, VTA322, VRG432, pumps DN25, servo ARA) |
|
840514 |
Brigade 514 (KRE 2D+ 40kW, VTA522, VRG432, servo ARA) |
|
840584 |
Brigade 584 (KRE 2D+ 40kW, VTA522, VRG432, pumps DN25, servo ARA) |
|
840414 |

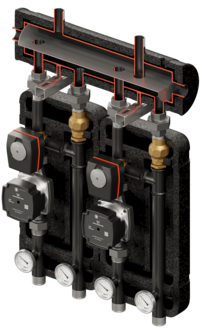

Brigade 414 (KRE 2D+ 40kW, 2 x VRG432, servo ARA) |
|
840484 |
Brigade 484 (KRE 2D+ 40kW, 2 x VRG432, pumps DN25, servo ARA) |
