Hydraulic sets Company
- Hydraulic sets available in 42 variants with 2 pump groups
- Additional 48 ready variants with 3 pump groups
- Factory assembled - time saving
- Better price compared to separte components purchase
- Pump groups are available in 3 variants:
- With mixing rotary valve VRG - adaptive KVS range
- With mixing thermostatic valve VTA322 (up to 60m²) or VTA372 (up to 150m²)
- Universal one / direct
- Condens low loss header units have built-in inox flow guide

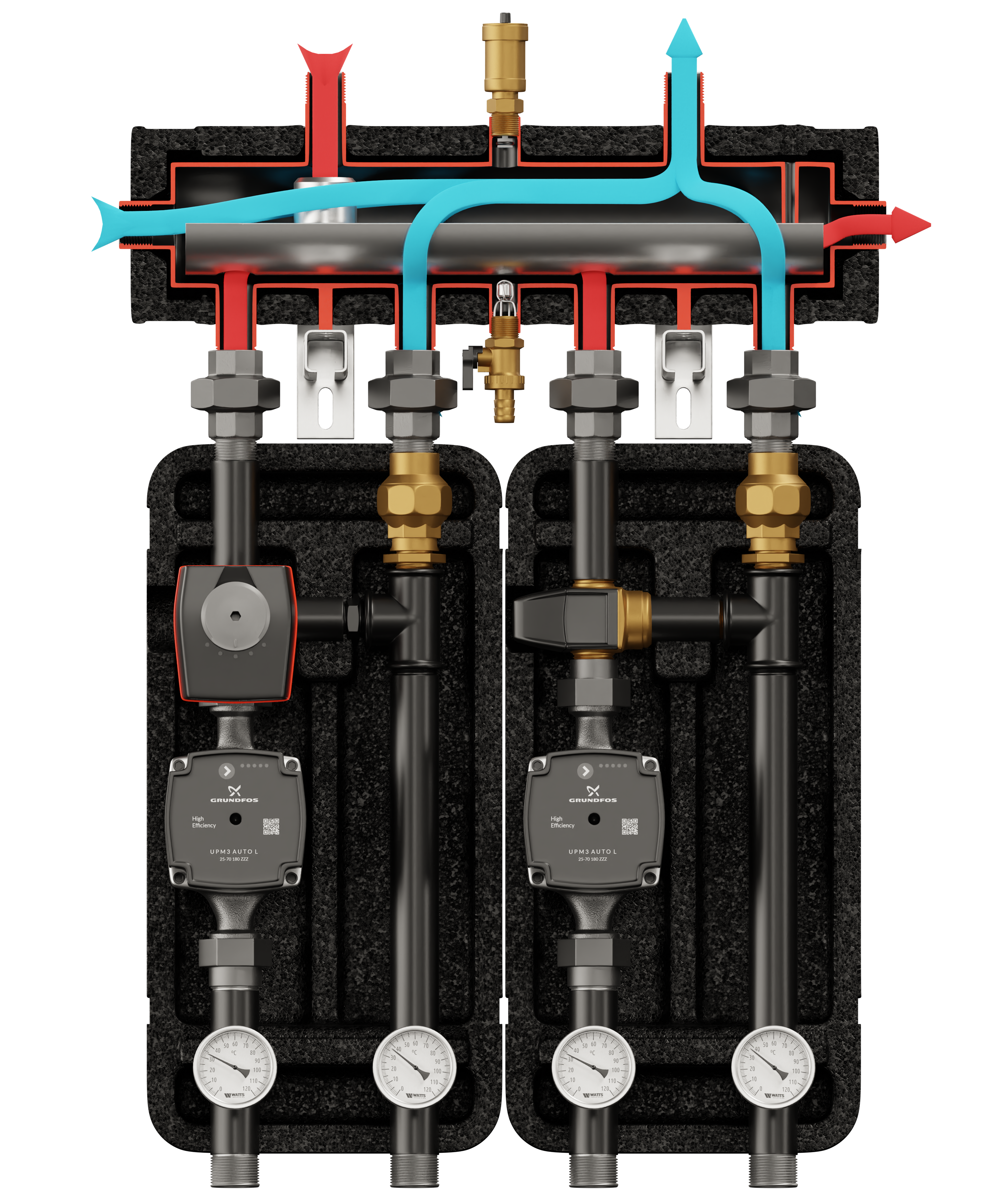

- Flow guide enables alternate connection of pump groups with a spacing of 125mm

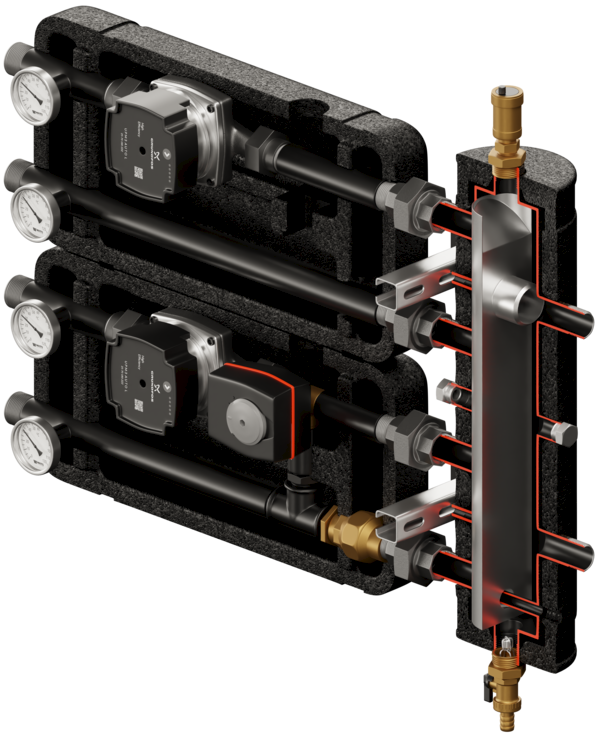

- Universal construction (adaptation set) enables 360° installation
- Perfect to connect two heat sources
- Maximum set power - up to 55kW

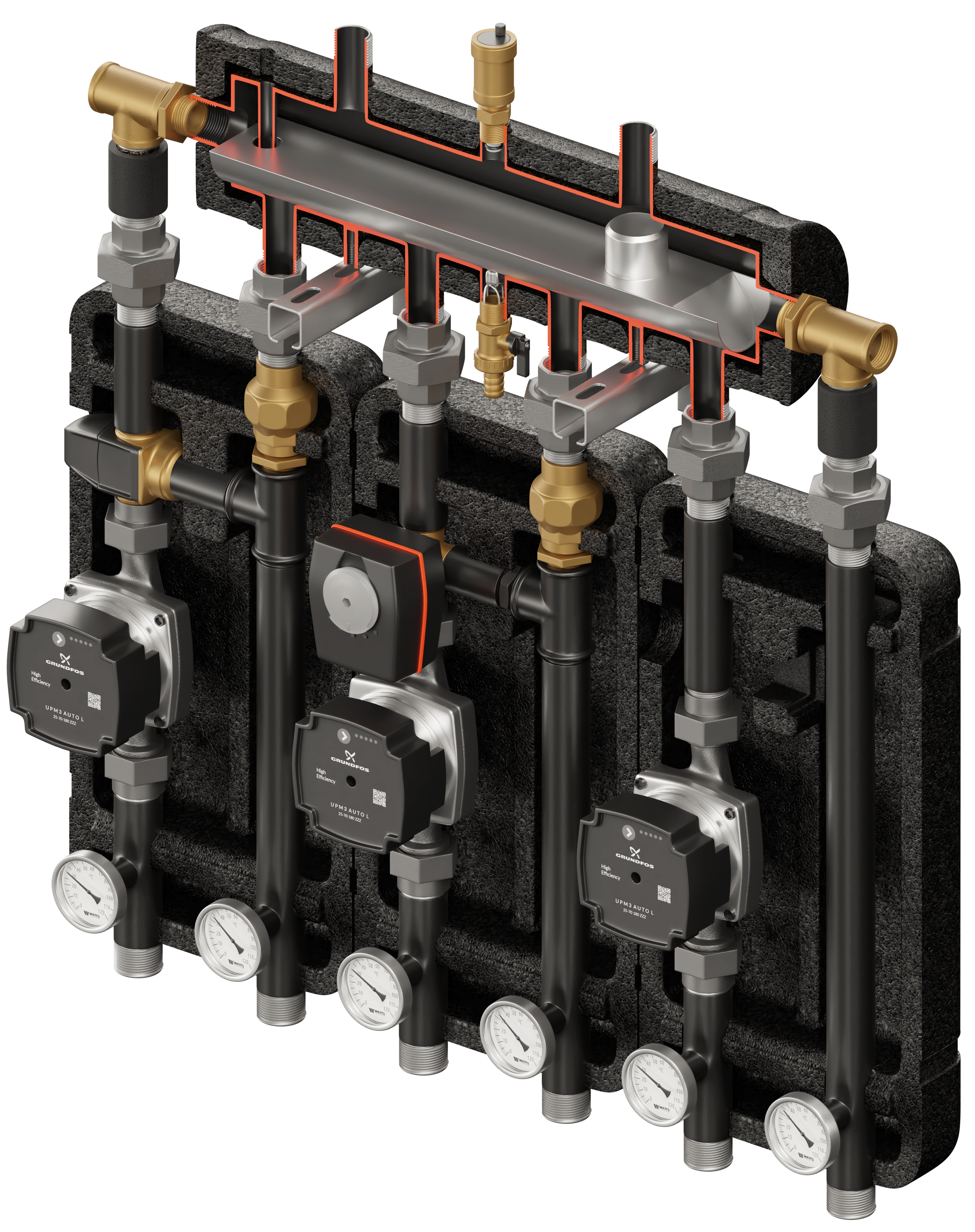

- Possibility to install 3rd pump group (extension set)
- Components from top suppliers
- EPP insulated
Please check our YouTube channel for more info
Pobierz kartę katalogową
| Item | Model |
|---|---|
|
855000 |
Company 000 (SKE 2DC+ 55kW, 2 x UNI) |
|
855050 |
Company 050 (SKE 2DC+ 55kW. 2 x UNI, LFP pumps) |
|
855070 |
Company 070 (SKE 2DC+ 55kW. 2 x UNI, Grundfos pumps) |
|
855300 |
Company 300 (SKE 2DC+ 55kW, UNI, VTA322) |
|
855303 |
Company 303 (SKE 2DC+ 55kW, 2 x VTA322) |
|
855304 |
Company 304 (SKE 2DC+ 55kW, VTA322, VRG432) |
|
855305 |
Company 305 (SKE 2DC+ 55kW, VTA322, VTA372) |
|
855314 |
Company 314 (SKE 2DC+ 55kW, VTA322, VRG432, servo ARA) |
|
855350 |
Company 350 (SKE 2DC+ 55kW, UNI, VTA322, LFP pumps) |
|
855353 |
Company 353 (SKE 2DC+ 55kW, 2 x VTA322, LFP pumps) |
|
855354 |
Company 354 (SKE 2DC+ 55kW, VTA322, VRG432, LFP pumps) |
|
855355 |
Company 355 (SKE 2DC+ 55kW, VTA322, VTA372, LFP pumps) |
|
855364 |
Company 364 (SKE 2DC+ 55kW, VTA322, VRG432, LFP pumps, servo ARA) |
|
855370 |
Company 370 (SKE 2DC+ 55kW, UNI, VTA322, Grundfos pumps) |
|
855373 |
Company 373 (SKE 2DC+ 55kW, 2 x VTA322, LFP pumps) |
|
855374 |
Company 374 (SKE 2DC+ 55kW, VTA322, VRG432, Grundfos pumps) |
|
855375 |
Company 375 (SKE 2DC+ 55kW, VTA322, VTA372, Grundfos pumps) |
|
855384 |
Company 384 (SKE 2DC+ 55kW, VTA322, VRG432, Grundfos pumps, servo ARA) |
|
855400 |
Company 400 (SKE 2DC+ 55kW, UNI, VRG432) |
|
855404 |
Company 404 (SKE 2DC+ 55kW, 2 x VRG432) |
|
855410 |
Company 410 (SKE 2DC+ 55kW, UNI, VRG432, servo ARA) |
|
855414 |
Company 414 (SKE 2DC+ 55kW, 2 x VRG432, servo ARA) |
|
855450 |
Company 450 (SKE 2DC+ 55kW, UNI, VRG432, LFP pumps) |
|
855454 |
Company 454 (SKE 2DC+ 55kW, 2 x VRG432, Grundfos pumps) |
|
855460 |
Company 460 (SKE 2DC+ 55kW, UNI, VRG432, LFP pumps, servo ARA) |
|
855464 |
Company 484 (SKE 2DC+ 55kW, 2 x VRG432, LFP pumps, servo ARA) |
|
855470 |
Company 470 (SKE 2DC+ 55kW, UNI, VRG432, Grundfos pumps) |
|
855474 |
Company 474 (SKE 2DC+ 55kW, 2 x VRG432, Grundfos pumps) |
|
855480 |

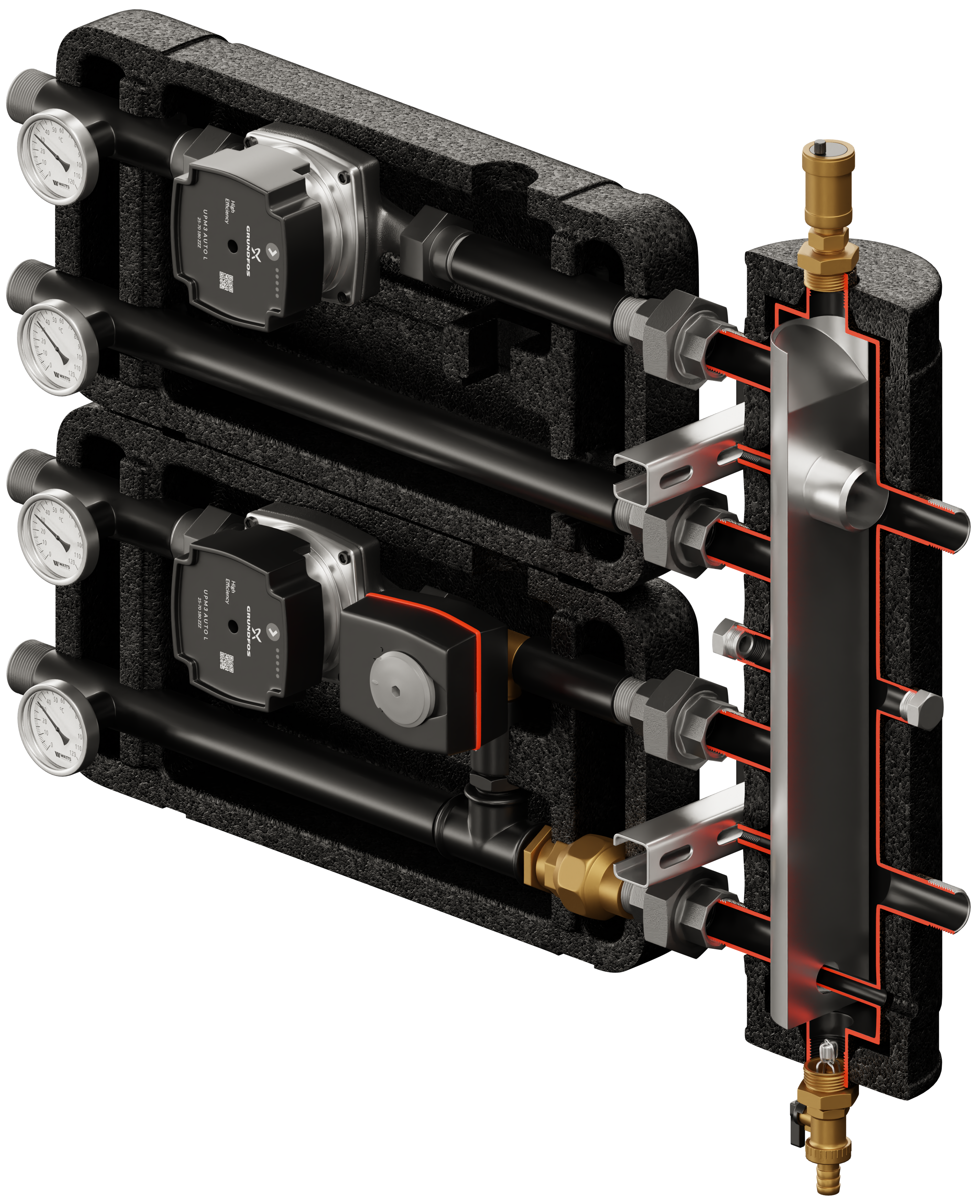

Company 480 (SKE 2DC+ 55kW, UNI, VRG432, Grundfos pumps, servo ARA) |
|
855484 |

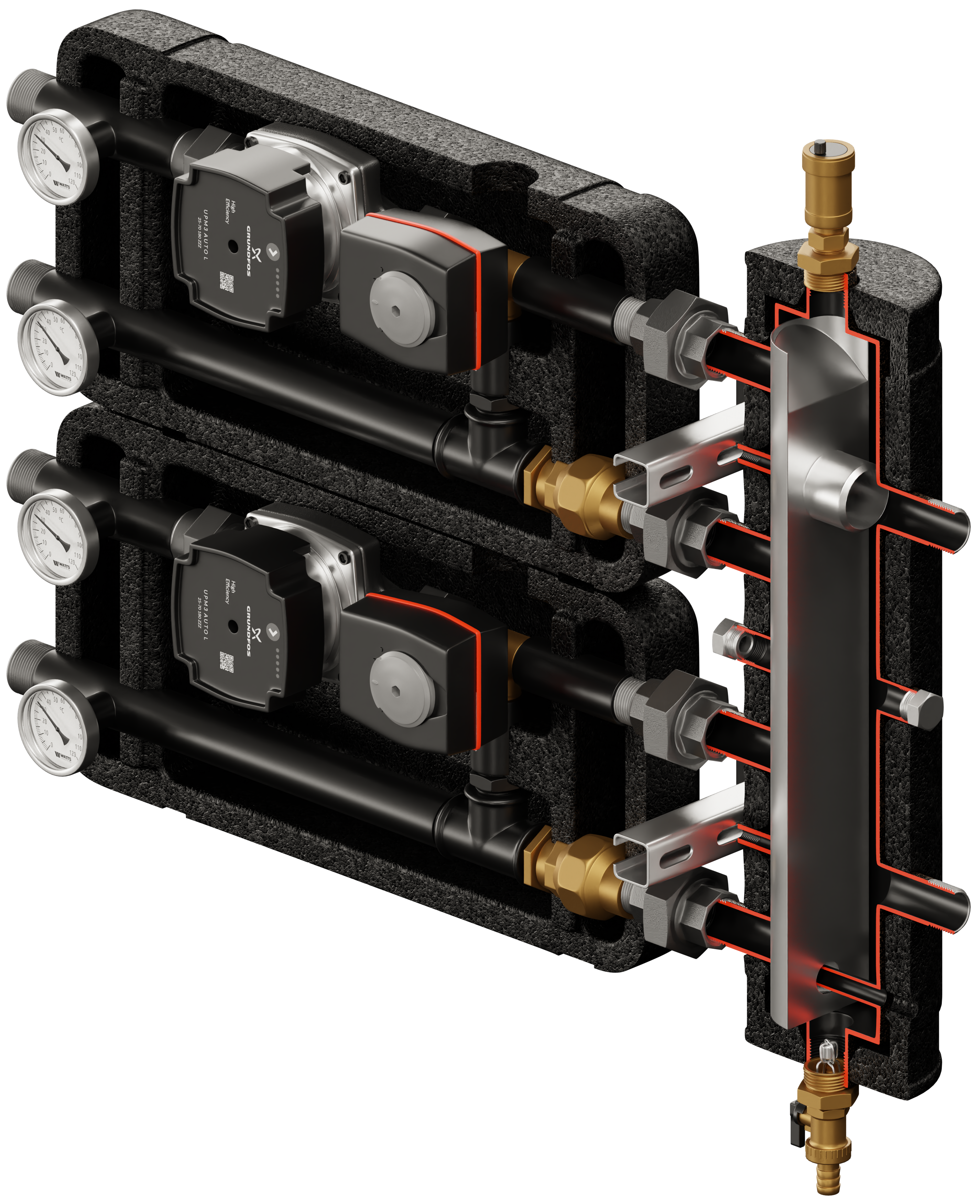

Company 484 (SKE 2DC+ 55kW, 2 x VRG432, Grundfos pumps, servo ARA) |
|
855500 |
Company 500 (SKE 2DC+ 55kW, UNI, VTA372) |
|
855505 |
Company 505 (SKE 2DC+ 55kW, 2 x VTA372) |
|
855550 |
Company 550 (SKE 2DC+ 55kW, UNI, VTA372, LFP pumps) |
|
855555 |
Company 555 (SKE 2DC+ 55kW, 2 x VTA372, LFP pumps) |
|
855570 |

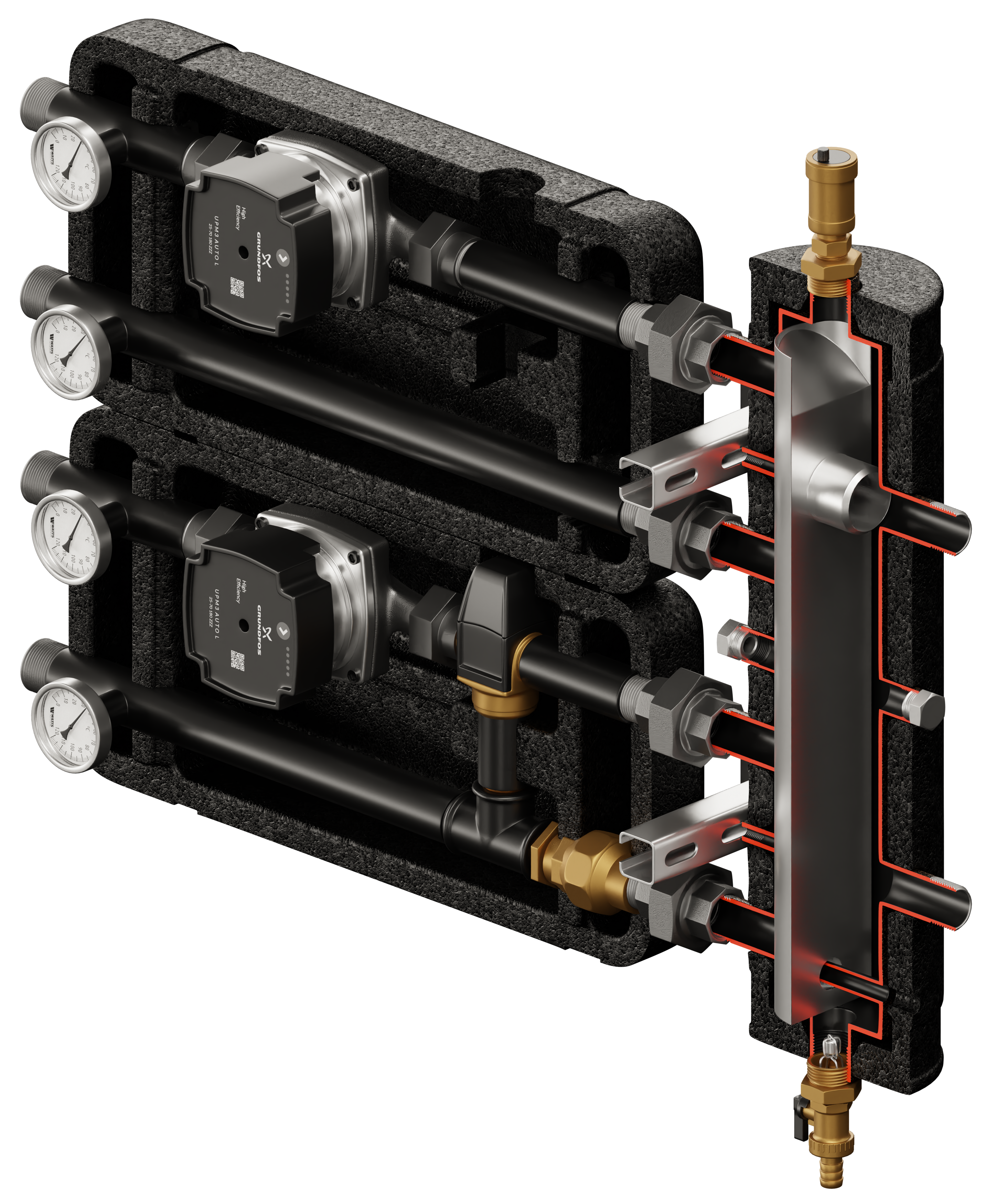

Company 570 (SKE 2DC+ 55kW, UNI, VTA372, Grundfos pumps) |
|
855575 |
Company 575 (SKE 2DC+ 55kW, 2 x VTA372, Grundfos pumps) |
|
855504 |
Company 504 (SKE 2DC+ 55kW, VTA372, VRG432) |
|
855514 |
Company 514 (SKE 2DC+ 55kW, VTA372, VRG432, servo ARA) |
|
855554 |
Company 554 (SKE 2DC+ 55kW, VTA372, VRG432, LFP pumps) |
|
855564 |
Company 564 (SKE 2DC+ 55kW, VTA372, VRG432, LFP pumps, servo ARA) |
|
855574 |

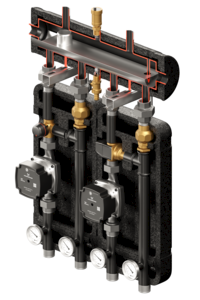

Company 574 (SKE 2DC+ 55kW, VTA372, VRG432, Grundfos pumps) |
|
855584 |
Company 584 (SKE 2DC+ 55kW, VTA372, VRG432, Grundfos pumps, servo ARA) |
